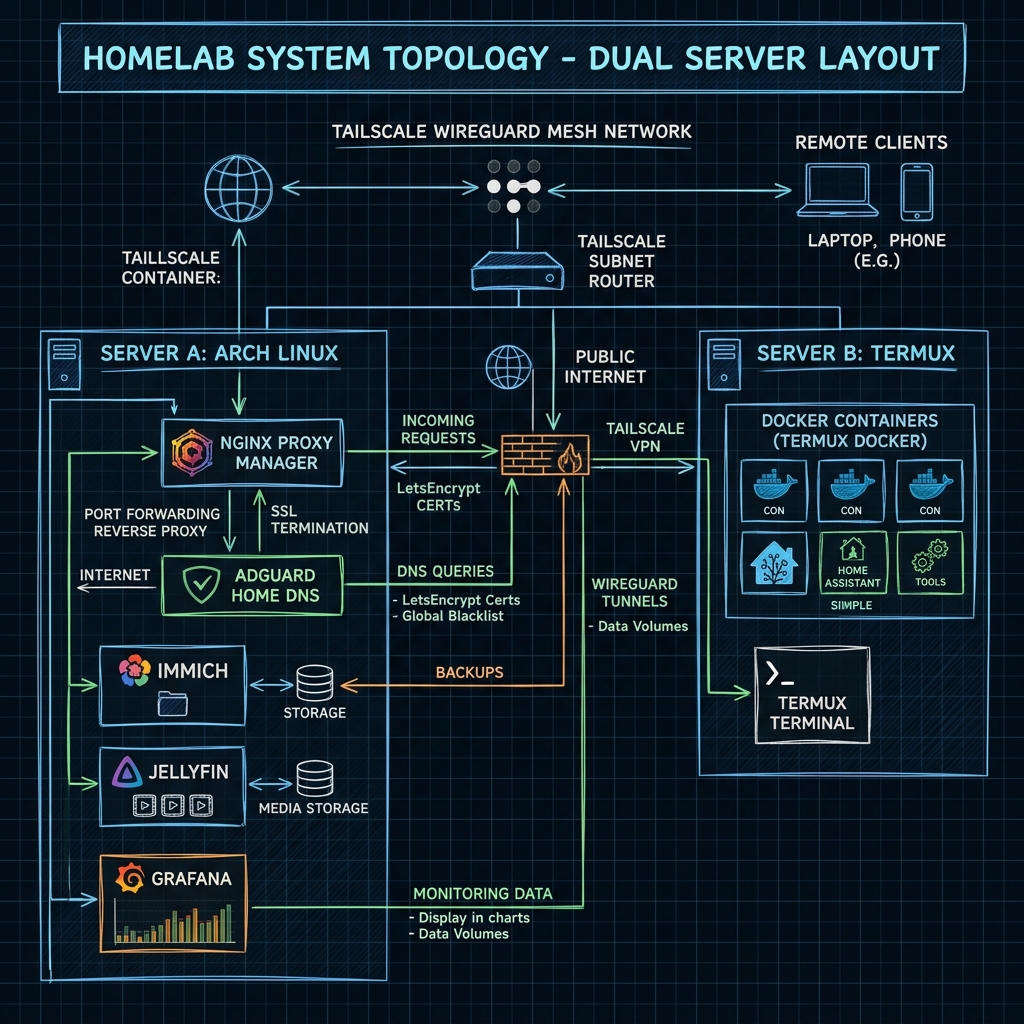

Homelab System Topology Visual Diagram
Topology Analysis & Node Responsibilities
1. Primary Compute Node (Server A - Lenovo Arch Linux)
- Role: High-capacity compute, media transcoding, AI indexing, and reverse proxy ingress.
- Network Interface: Dual physical Ethernet + Tailscale Mesh interface (
100.64.0.10). - Core Workloads:
- Nginx Proxy Manager: Handles central ingress, SSL certificate termination, and HTTP/2 proxying.
- Immich Stack: Handles photo indexing, machine learning background workers, and PostgreSQL database.
- Jellyfin & Plex: Media streaming engines with VAAPI hardware acceleration pass-through.
- Prometheus & Grafana: System telemetry collection and visualization.
2. Low-Power Infrastructure Node (Server B - Android Termux)
- Role: Continuous low-power infrastructure support and primary DNS resolution.
- Network Interface: Wi-Fi / USB Ethernet tethering + Tailscale Mesh interface (
100.64.0.11). - Core Workloads:
- AdGuard Home: Primary DNS resolver providing ad blocking, malware domain filtering, and local DNS overrides.
- Sophia Radar: Continuous uptime and heartbeat checker monitoring network health.
IP Addressing & Subnet Matrix
| Node / Interface | Host OS | Subnet / IP Range | Access Type | Managed Services |
|---|---|---|---|---|
| Server A Host | Arch Linux | 100.64.0.10/32 |
Tailscale P2P | Docker Engine, Host SSH |
| Server B Host | Android Termux | 100.64.0.11/32 |
Tailscale P2P | Termux SSH, DNS Server |
| Docker Bridge A | Linux Bridge | 172.18.0.0/16 |
Internal Docker | NPM, Immich, Jellyfin, Grafana |
| Docker Bridge B | Linux Bridge | 172.19.0.0/16 |
Internal Docker | AdGuard Home, Telemetry Collectors |
Interactive Topology Flowchart
flowchart TB
subgraph Clients [Client Layer]
RemoteLaptop[Remote Laptop - macOS]
RemotePhone[Remote Mobile - iOS/Android]
end
subgraph MeshNetwork [Tailscale Zero Trust Mesh Network]
Tailnet[Tailnet Encrypted WireGuard P2P Overlay]
end
subgraph ServerA [Server A: Lenovo Arch Linux Host]
NPM[Nginx Proxy Manager :443]
Immich[Immich Photo Storage :2283]
Jellyfin[Jellyfin Media :8096]
Grafana[Grafana Dashboards :3000]
end
subgraph ServerB [Server B: Android Termux Host]
AdGuard[AdGuard Home DNS :53 / :3000]
Sophia[Sophia Radar Monitoring]
end
RemoteLaptop -->|WireGuard Encrypted| Tailnet
RemotePhone -->|WireGuard Encrypted| Tailnet
Tailnet --> NPM
NPM -->|Local Proxy| Immich
NPM -->|Local Proxy| Jellyfin
NPM -->|Local Proxy| Grafana
Tailnet -->|DNS Queries| AdGuard
ServerA -.->|Heartbeat Ping| Sophia
ServerB -.->|Heartbeat Ping| Sophia
DNS Query Resolution Sequence
sequenceDiagram
autonumber
actor Client as Homelab Client Device
participant AdGuard as AdGuard Home (Termux)
participant Upstream as Cloudflare DNS (1.1.1.1)
participant NPM as Nginx Proxy Manager
participant App as Target Container
Client->>AdGuard: 1. Query DNS for immich.homelab.net
alt Domain Matches Blocklist Rule
AdGuard-->>Client: 2a. Return 0.0.0.0 (Ad/Tracker Blocked)
else Local Homelab Domain
AdGuard-->>Client: 2b. Return Tailscale IP (100.64.0.10)
else Public Internet Request
AdGuard->>Upstream: 2c. Query via Encrypted DoH
Upstream-->>AdGuard: Return Public IP Address
AdGuard-->>Client: Forward Resolved Public IP
end
Client->>NPM: 3. Connect via HTTPS (100.64.0.10:443)
NPM->>App: 4. Pass Request to Internal Port (172.18.0.5:2283)
App-->>NPM: 5. Return Application Data Payload
NPM-->>Client: 6. Encrypted TLS Response
